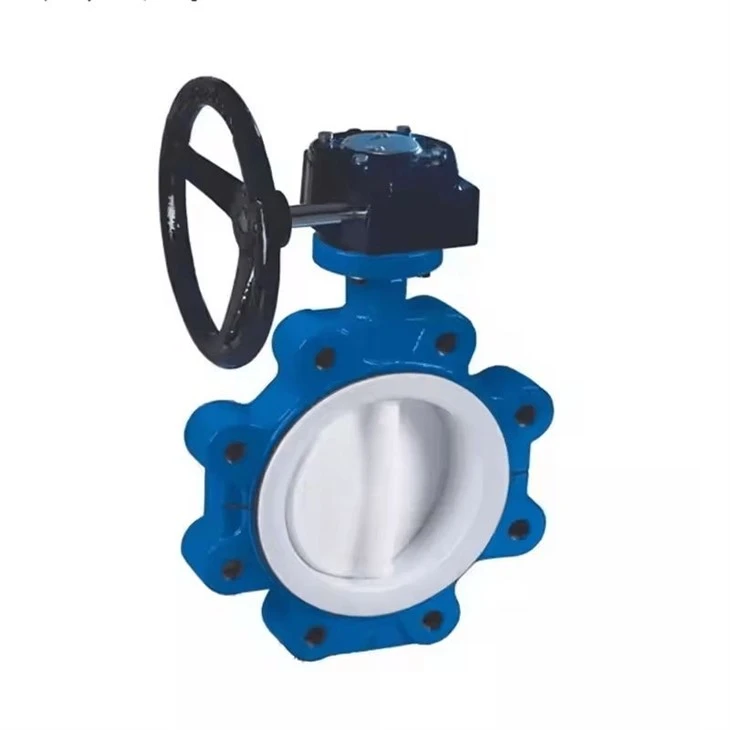

Double Eccentric Butterfly Valve

Double eccentric butterfly valve is also called high-performance butterfly valve. It is mainly suitable for drainage in water plants, power plants, steel mills, chemical industries, water source projects, environmental facilities construction and other systems. It is especially suitable for use on water pipelines as regulating and intercepting equipment. Compared with the center line butterfly valve, the double eccentric butterfly valve is more resistant to high pressure, has a longer life and has good stability.

Structural features
1 Reasonable design, compact structure, easy assembly and disassembly, and easy maintenance.

2. Adopt eccentric structure to reduce the friction of the sealing ring and extend the service life of the valve.

3 Completely sealed, zero leakage. Can be used in ultra-high vacuum conditions

4. Replace the valve plate sealing ring, butterfly plate, rotating shaft and other materials, which can be applied to a variety of media and different temperatures.

Application: General
Place of Origin: Shandong, China
Power: Manual
Structure: BUTTERFLY
Customized support: OEM, ODM, OBM, Software reengineering
Port Size: DN40-DN600
Warranty: 3 years
