Your Professional Pinch Valve Supplier

Yantai Jinhai Precision Instrument Co., Ltd. is located in the beautiful coastal city of Yantai. We welcome all customers and friends to come and visit us. We are a technology company integrating automation control systems, manufacturing, sales, and service. We specialize in the research and development of water valves and ball valves. , butterfly valves, safety valves, etc., are widely used in petroleum, chemical industry, medicine, fire protection and water treatment engineering, etc. The high-quality products and services are loved by customers at home and abroad, and are exported to Europe, America, the Middle East and Southeast Asia markets.

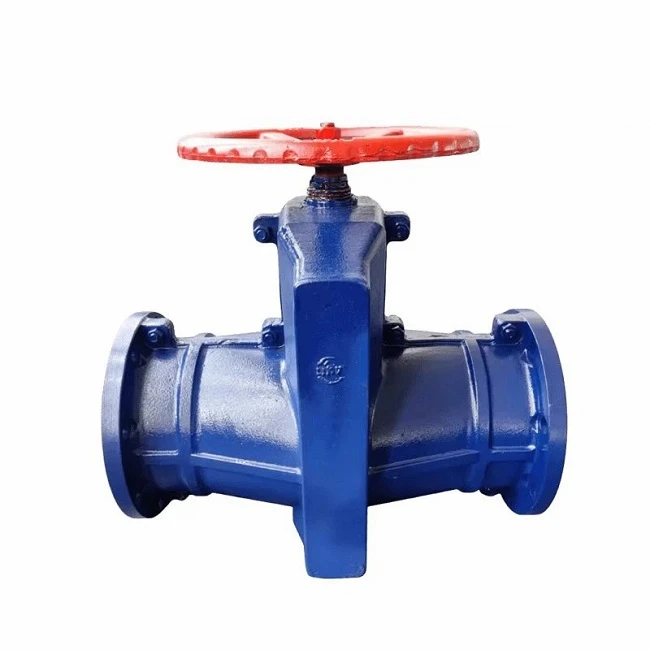

Manual Flange Cast Iron Pinch Valve
Manual Flange Cast Iron Pinch Valve
Flanged Cast Iron Pinch Valve
Flanged Cast Iron Pinch Valve

Why choose us

Our Certificates

The company complies with American MSS SP-70, MSS SP-71, MSS SP-85, AWWA C509 standards, Japanese JISB2043 standards, German DIN3352 standards, and British BS 5163 standards,European Union EN1902.

Sales Market

Products are exported to more than 20 countries and regions including the United States, Canada, Western Europe, the Middle East and Southeast Asia. And cooperate with well-known domestic enterprises.

Solution

We have a rich technical team, and we can customize suitable solutions specifically for you.

Technical Support

At Jinhai Company, we provide the highest quality water valve installation solutions.

Product name	Pinch Valve with pneumatic actuator
Work principle	The external air drives the cylinder to squeeze the inner sleeve to open or close
Size	DN25-DN1000
Body Material	Ductile Iron/Aluminum Alloy/Carbon Steel
Rubber sleeve technology	Imported top hand-made technology
Sleeve material	High wear resistant red rubber/ Pure gum rubber /Neoprene /NBR/EPDM, etc
Protective coating	Bias-ply, fabric-reinforced
Pressure/Temperature	0.6Mpa/1.0Mpa/1.6Mpa/ -35℃~+130℃
Flange ends	PN10/16, ANSI 150LB, etc
Medium	Sewage, pulp, acid and alkali medium, dry powder, slurry and solids handling etc.
Actuator	Double acting or Single acting, accessories are available
Advantages	1.No pressure loss, non-blocking, zero leakage, impact resistant 2.Full face-to-face integral elastomer molded flange 3.Manufactured to high standards 4.Superior service life 5.Sleeves available in a wide variety of elastomers 6.Custom sizes available 7.Bare body construction：The dynamic situation of the sleeve can be observed directly on the spot 8.With bias-ply, fabric-reinforced coating to protect the rubber sleeve, the sleeve is high abrasion resistant, corrosion resistant, tear resistant and fatigue resistant. 9.The sleeves are the only wetted part of the valve, eliminating the need for valve bodies made of expensive metal alloys. Because the sleeves are the only wetted part, they are the only replacement part needed in pinch valves, thus can save a lot of cost.
Advantages

SPECIFICATIONS

Specification List of Pinch Valves

Size	50NB — 600NB
Pressure	150PS1
Temperature	0 Deg C - 1200 Deg C.
Body , Chest	Solid One piece casting of Cast Iron Fg 260, Cast Steel Gr WCB ,CF8,CF8M.
Seat	Integral to Body, Soft, Optional.
Gate	AISI SS 304,316,316L,317,317L
Screw Spindle	AISI SS 410,304,316.
Nut	Brass
Yoke	Plate type of MS .
Gland Follower	Cast Iron , Cast steel , Ductile Iron ,CF8,CF8M.
Hand Wheel	Cast Iron , Cast steel , Ductile Iron
Gland Packing	PTFE , PTFE Impregnated
Ends	Lugged
Port	STANDARD [Round], Optional V Port, Diamond Port,.

Pneumatic Pinch Valves Temperature

Temperature

-50degF to 250degF

Max. Working Pressure of Pneumatic Pinch Valves

Max. Working Pressure

Up to 300psi (20bar)

Piloting pressure of Pneumatic Pinch Valves

Piloting pressure

70 PSI – 145 PSI

Pneumatic Pinch Valves Ambient Temperature

Ambient Temperature

32°F to 104°F

Connection options of Air operated Pinch Valve

Flange Connection

Internal Thread Connection G / NPT

Tri-Clamp

Weld-on ends

Threaded spigot (RJT Connection)

Threaded hose nozzle Connection

Aseptic /Hygienic Connection

Operating / medium pressure max of Air operated Pinch Valve

Operating / medium pressure

90 psi

Applications

Industrial applications increasingly use pinch valves due to their advantages. Some of the industries using pinch valves include:

Food and beverage industries: Sanitary pinch valves have rubber sleeves made of nitrile, natural rubber, and EPDM, all of which are FDA-approved for contacting food. Also, a pinch valve cycles rapidly, which significantly increases packaging efficiency.

Pharmaceutical industry: Similar to the food industry, the pharmaceutical industry demands cleanliness, making sanitary pinch valves a good choice.

Chemical industry: The chemical industry has a broad range of applications. Pinch valves can accommodate many of these applications because of the variety of materials available for pinch valve sleeve production.

Cement industry: Natural rubber pinch valve sleeves are durable enough to withstand cement’s abrasion.

Bulk and solid handling industry: Pinch valves offer the abrasion resistance necessary to handle bulks and solids. The valves’ full-bore opening prevents solids from clogging the valve.

Ceramic industry: Pinch valves with reinforced rubber sleeves can handle the extreme abrasiveness of a ceramic flow.

Plastics industry: Pinch valves are suitable for moving plastic pellets and nibs, which may clog up other types of valves.

Wastewater industry: Pinch valves operate as pressure relief and shut-off valves in the wastewater industry.

Certificate

productcate-1-1

FAQ

Q: Can you supply invoice and CO with chamber of commerce?

A: Yes, we can supply.

Q: Can you accept L/C deferred 30, 60, 90days?

A: We can.

Q: Can you accept O/A payment?

A: We can.

Q: Can you supply samples?

A: Yes, some samples are free.

Q: Can you supply the products which comply with NACE?

A: Yes, we can.

Q: Can you visit your factory

A: Yes, sure. Welcome.

Q: Can you inspect the goods before delivery

A: Yes, sure. Welcome to our factory inspect the goods. Also accept third party inspection, such as SGS, TUV, BV etc.

Q: Can you supply MTC , EN10204 3.1/3.2 certificate?

A: Yes, sure. we can

Q: Do you have ISO

A: Yes, we have

Q: Can you accept OEM?

A: Yes, we can

Q: Can you accept marking our LOGO?

A: Yes, we can

We're well-known as one of the leading pinch valve manufacturers and suppliers in China. If you're going to buy high quality pinch valve made in China, welcome to get more information from our factory.
