Your Professional Gate Valve Supplier



Yantai Jinhai Precision Instrument Co., Ltd. is located in the beautiful coastal city of Yantai. We welcome all customers and friends to come and visit us. We are a technology company integrating automation control systems, manufacturing, sales, and service. We specialize in the research and development of water valves and ball valves. , butterfly valves, safety valves, etc., are widely used in petroleum, chemical industry, medicine, fire protection and water treatment engineering, etc. The high-quality products and services are loved by customers at home and abroad, and are exported to Europe, America, the Middle East and Southeast Asia markets.







First 12 Last

Why choose us



Our Certificates

The company complies with American MSS SP-70, MSS SP-71, MSS SP-85, AWWA C509 standards, Japanese JISB2043 standards, German DIN3352 standards, and British BS 5163 standards,European Union EN1902.



Sales Market

Products are exported to more than 20 countries and regions including the United States, Canada, Western Europe, the Middle East and Southeast Asia. And cooperate with well-known domestic enterprises.



Solution

We have a rich technical team, and we can customize suitable solutions specifically for you.



Technical Support

At Jinhai Company, we provide the highest quality water valve installation solutions.



Gate Valve





Gate valves are used to cut off or connect media transmission, and are suitable for pipeline systems in petroleum, chemical, thermal power plants and other industrial fields. Gate valves can only be fully opened and disconnected in the pipeline, which means it cannot be used for regulation and throttling. Gate valve provides well on/off or shuts off features, pressure drop during operation is very less, and is bidirectional. Meanwhile as metal to metal seat, these valves can respond to specific operating high pressure, high temperature operating conditions.



CUSTOM FABRICATED GATE VALVES SPECIFICATIONS



SIZE RANGE:

Through 144"



TEMPERATURE RANGE:

-40°F to 2000°F



PRESSURE RATING:

Through ANSI Class 900



SEATING:

Metal or Resilient,Uni-directional or Bi-directional with options for removable seat, inflatable seal or grease seal.



MATERIALS:

Valves are available in solid or wetted parts construction in any weldable alloy, including Stainless Steel, Hastelloy, Inconel, Monel and Titanium.



ABRASIVE SERVICE:

Optional abrasion and corrosion resistant designs with hard facing available in Stellite, Tungsten Carbide, Pulse Fusion.



VALVE STYLE:

H-2150 Split Gate (Double Gate)

H-21 Sluice Gate

Others includes custom configuration of the face to face, actuation, etc. of the other valve styles.



Design standard

API, ASME, ISO, JIS, DIN, BS, GB

Body Material

ASTM, ASME, DIN

Cast Steel / Forged Steel

Titanium, Nickel, Monel, Hastelloy, Monel, Inconel, Duplex, Zirconium, Alloy20, 904L, 254SMO, stainless steel etc.

Pressure Class,

Class 150 - 2500 1.0MPa~42.0MPa, JIS 10K~40K

Size(Standardized)

1/2" up to 60" DN15~DN1500

Connection Form

Thread NPT, Socket weld, butt weld, Flanged

Operation Method

Manual (including the type with a manual reduction gear), electric, Pneumatic



Custom Options





Gate valve dimension (1, 2, 3, 4, 6, 8, 10, 12, 14, 16, 18, 20, 24 inch, etc.), connection type (Flange connection/Screw connection/Welded end connection), pressure, material (stainless, brass, bronze, cast iron, etc.), operation type, company logo, private label, package, etc.



Gate Valve Types


Gate valves come in many varieties and are categorized in many different ways.



1. Valve stem structure: Rising stem and non-rising stem

According to the thread position on the valve stem, it is divided into rising stem gate valve and non-rising stem gate valve.

The rising stem gate valve lifts or lowers the valve disc through the threaded transmission of the valve stem and the handwheel.

The non-rising stem gate valve uses the valve stem to rotate at a fixed point to drive the valve disc up and down to complete opening and closing.

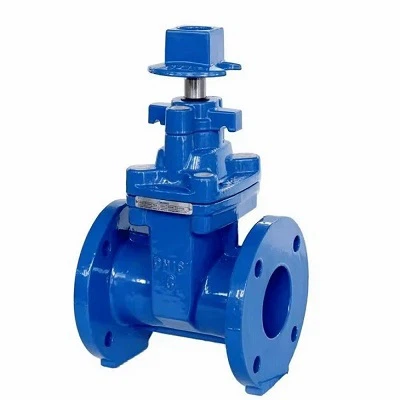

2. Sealing surface: soft seal and hard seal

Soft Seal: Use high-quality rubber to tightly wrap the gate plate of the soft-sealing gate valve as a whole, which improves the sealing performance and is not easy to fall off.

Hard Seal: The valve seat sealing ring can be directly overlayed with metal on the valve body to form a sealing surface according to customer requirements. For cast iron, stainless steel, and copper alloy valves, the sealing surface can also be directly processed on the valve body.

productcate-400-400



productcate-400-400

3. Structure: parallel and wedge type

According to the structure of the gate, it can be divided into parallel gate valve and wedge gate valve.

Parallel gate valve: The two sealing surfaces of the gate are parallel to each other and perpendicular to the center line of the valve body channel.

Wedge gate valve: The sealing surface is symmetrical to the vertical centerline of the gate plate at a certain inclination angle, which is called the wedge half angle.



4. Connection: flange, welding (overlay welding, socket welding), clamp, threaded connection

The flange type is the most commonly used and has the widest adaptability. The model number is DN50-DN1200. This kind of valve is suitable for occasions that require frequent maintenance and replacement.

The welding type is usually used for high pressure or high temperature DN50-DN600 pipes.

The grooved type is commonly used in fire protection pipes of DN50-DN300.

Thread type is used for small diameter DN8-DN80 low pressure pipes.



Gate Valve Vs Globe Valve



Gate Valves

Globe Valve

Low Pressure Drop.

High Pressure Drop

Construction is simpler, with majority of parts on top of valve body.

Globe Valve construction in complex, major internal components are inside the body cavity.

Is a multidirectional valve.

Globe Valve is unidirectional.

Disk moves perpendicular to the fluid flow.

The disk of globe valve moves parallel to the flowing medium.

Is used only for Isolation.

Globe Valve is used for Flow Control.

S can be used for larger sizes as well.

Globe valves are typically not used for sizes greater than 12 inch

Weight is comparatively lesser.

Weight of same size and rating Globe Valve is more as compared to .

Offers little resistance to fluid flow.

Globe Valve offers more resitance to fluid flow.

Comperatively cheaper

Globe valve is Costlier due to complex design



Certificate



productcate-1-1



FAQ

Q: What is your After-sales service term?

A: 18 months for all our products.

Q: Can I request to change the form of packaging and transportation?

A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

Q: Can I request fast delivery?

A: Yes, if we have stocks.

Q: Can I have my own Logo on the product?

A: Yes, you can send us your logo drawing, we’ll put it on the valve.

Q: Can you produce the valve according to my own drawings?

A: Yes.

Q: Do you accept custom design on size?

A: Yes.

Q: What's your terms of payment?

A: T/T, L/C.

We're well-known as one of the leading gate valve manufacturers and suppliers in China. If you're going to buy high quality gate valve made in China, welcome to get more information from our factory.
