Yantai Jinhai Precision Instrument Co., Ltd. is located in the beautiful coastal city of Yantai. We welcome all customers and friends to come and visit us. We are a technology company integrating automation control systems, manufacturing, sales, and service. We specialize in the research and development of water valves and ball valves. , butterfly valves, safety valves, etc., are widely used in petroleum, chemical industry, medicine, fire protection and water treatment engineering, etc. The high-quality products and services are loved by customers at home and abroad, and are exported to Europe, America, the Middle East and Southeast Asia markets.

Jis F7220 Cast Iron Y Type Strainer
JIS F7220 Cast Iron Y Type Strainer
Jis Screw Bonnet Type Y Strainer
JIS Screw Bonnet Type Y Strainer
Jis Shipbuilding-5k Simplex Oil Strainer
JIS Shipbuilding-5K Simplex Oil Strainer
Jis 10k Cast Iron Y Type Strainer
JIS 10K Cast Iron Y Type Strainer
Cast Iron Y Strainer
Cast Iron Y Strainer
American Standard Y Strainer Valve with Ci Body
American Standard Y Strainer Valve With
Ductile Iron Bs Y Type Strainer with Flange End
Ductile Iron BS Y Type Strainer With
Ansi Y Strainer Cast Iron Strainer
ANSI Y Strainer Cast Iron Strainer

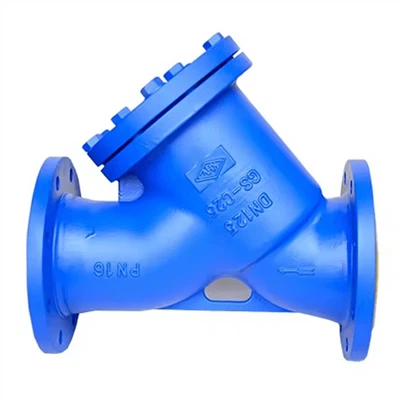

Flange Connection Filter
Flange Connection Filter
Pipe Cast Iron Filter
Pipe cast iron filter
Pn16 Y-strainer
PN16 Y-STRAINER
Pn25 Cast Iron Y-strainer
PN25 cast iron Y-STRAINER

Why choose us

Our Certificates

The company complies with American MSS SP-70, MSS SP-71, MSS SP-85, AWWA C509 standards, Japanese JISB2043 standards, German DIN3352 standards, and British BS 5163 standards,European Union EN1902.

Sales Market

Products are exported to more than 20 countries and regions including the United States, Canada, Western Europe, the Middle East and Southeast Asia. And cooperate with well-known domestic enterprises.

Solution

We have a rich technical team, and we can customize suitable solutions specifically for you.

Technical Support

At Jinhai Company, we provide the highest quality water valve installation solutions.

Specification

Materials of major parts
No.	Part	Material
1	Body	Ductile Iron
2	Filter	SS304
3	Bonnet	Ductile Iron
4	O-Ring	NBR
5	Bolt	SS304
6	Coating	Epoxy Resin

Dimensions(mm)
DN	L	D	F	S	C	B	N-D
50	203	165	125	99	19	3	4-19
65	216	185	145	118	19	3	4-19
80	241	200	160	132	19	3	8-19
100	292	220	180	156	19	3	8-19
125	330	250	210	184	19	3	8-19
150	356	285	240	211	19	3	8-19
200	495	340	295	266	20	3	12-23
250	622	400	355	319	22	3	12-28
300	698	455	410	370	24.5	4	12-28

Key Benefits

Sizes available in 1/2” – 12”
Body&cap: ASTM A351 Gr. CF8M/CF8, A216 WCB
Mesh/Filter Element: ASTM A 276 T – 304 / 316 (SS 304 / SS 316), Brass or other alloy
Seal: PTFE as standard, Stainless steel/Graphite or Stainless steel + Graphite on request
Design Standard: ASME B 16.34
Inspection & Testing Standard: API 598
Face to face dimension: ASME B 16.10
End Connection: Class 150#/300#, 10K/20K, PN10/16/25/40
Monel screens as option
Perforated stainless steel screens – 1/32” to ½”
20, 40, 60, 80, 100, 150, 200, 325 and 400 mesh stainless steel screens

What are the Applications of Stainless Steel Y-strainer

The common uses of stainless steel Y-strainers include:

Diesel Engine

This type of straining solution finds application in diesel engines as a block between the fuel tank and the fuel pump.

It helps in preventing obstruction from contaminations existing in the diesel.

Petroleum Industry

Oil and gas industry use Y-strainers to clean the tar, gum, and other materials found in products transported in their piping system.

Stainless steel Y-strainers also function as final filtering element in biofuel production.

Food Production

Y strainers assist in eliminating things like pulp and skin from fruit squashes.

You can also use them to eliminate lumps from chocolate syrup and wax from honey.

Ductile Iron BS Y Type Strainer With Flange End

Cosmetics Industry

This sector employs Y-strainers to remove clumps of undissolved semi-solids from the products during processing before manufacturing is complete.

Commercial Buildings

Here, you use them to keep cooling towers and boilers from releasing scale into the water.

Chemical Production

Stainless steel Y strainers help to ensure a cleaner product moves through the pies.

They also guarantee that any debris present does not adversely affect the downstream equipment.

Other Applications

Stainless steel Y strainers also find use in liquid applications where you mix sand and gravel with water.

Materials of Y strainers and their pressure limits, maximum operating temperatures, and working conditions

The common materials of Y strainers and their pressure limits, maximum operating temperatures, and working conditions are as below. Understanding this will help you select the appropriate material for your Y strainer.

Carbon Steel

Maximum Pressure: Typically up to 1500 psi (103 bar)

Maximum Temperature: Up to 450°F (232°C)

Applications: Suitable for general use in water, oil, and gas systems, especially where corrosion resistance is not a primary concern.

Stainless Steel (304, 316, 316L)

Maximum Pressure: Typically up to 2500 psi (172 bar)

Maximum Temperature: Up to 800°F (427°C)

Applications: Ideal for corrosive environments, such as chemical plants, food processing, and marine applications. Stainless steel 316 and 316L offer higher resistance to corrosion, especially in saline or acidic environments.

JIS Shipbuilding-5K Simplex Oil Strainer

Ductile Iron

Maximum Pressure: Typically up to 300 psi (21 bar)

Maximum Temperature: Up to 250°F (121°C)

Applications: Often used in water and wastewater treatment plants, where moderate pressure and temperature are involved.

Bronze

Maximum Pressure: Typically up to 150 psi (10 bar)

Maximum Temperature: Up to 400°F (204°C)

Applications: Suitable for applications involving non-corrosive liquids and gases, such as in HVAC systems and some chemical processes.

Plastic (PVC, CPVC, Polypropylene)

Maximum Pressure: Typically up to 150 psi (10 bar)

Maximum Temperature: Up to 180°F (82°C) for PVC, higher for CPVC and polypropylene

Applications: Used for corrosive fluids in lower pressure systems, particularly in the chemical, food, and pharmaceutical industries.

Extra Service

Our aim is not only to provide valves but we help customers to design products,design artwork,valve proposal, book shipment,Installation tutorial

Valve Project Designing

We are free design your valves according to your inquiry of your plumbing system,no extra cost.

Plumbing Control Proposal

We can help you choose valves and heating manifold, and advice in house application

Fluid Control Installation

We can provide an installation guide and tutorial about valves and underfloor heating manifold

Shippment Service Solution

We help customers to book a container, documents preparation, and clearance, even to warehouse

Certificate

productcate-1-1

FAQ

Q: Can you supply invoice and CO with chamber of commerce?

A: Yes, we can supply.

Q: Can you accept L/C deferred 30, 60, 90days?

A: We can.

Q: Can you accept O/A payment?

A: We can.

Q: Can you supply samples?

A: Yes, some samples are free.

Q: Can you supply the products which comply with NACE?

A: Yes, we can.

Q: Can you visit your factory

A: Yes, sure. Welcome.

Q: Can you inspect the goods before delivery

A: Yes, sure. Welcome to our factory inspect the goods. Also accept third party inspection, such as SGS, TUV, BV etc.

Q: Can you supply MTC , EN10204 3.1/3.2 certificate?

A: Yes, sure. we can

Q: Do you have ISO

A: Yes, we have

Q: Can you accept OEM?

A: Yes, we can

Q: Can you accept marking our LOGO?

A: Yes, we can

We're well-known as one of the leading strainer manufacturers and suppliers in China. If you're going to buy high quality strainer made in China, welcome to get more information from our factory.
