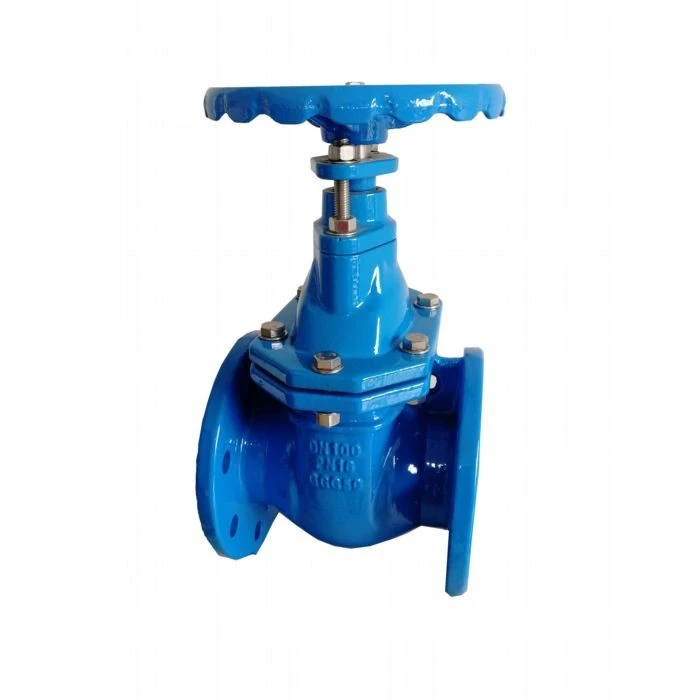

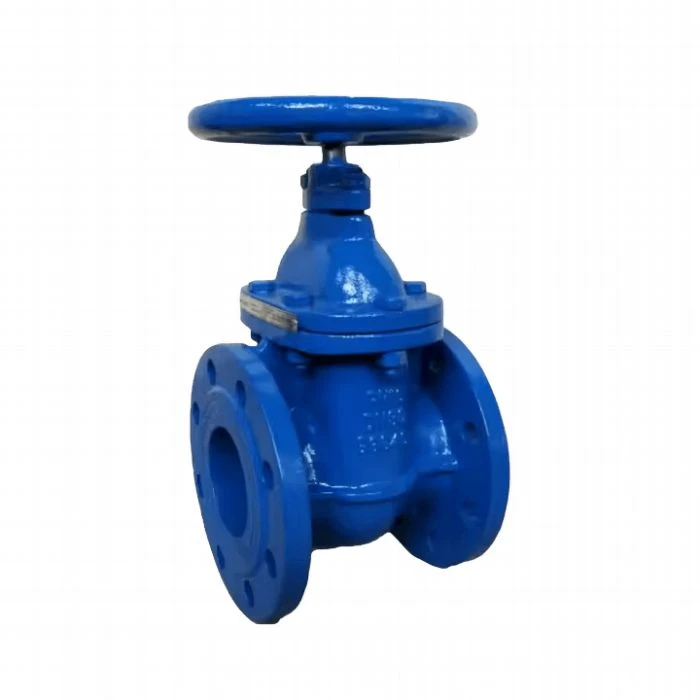

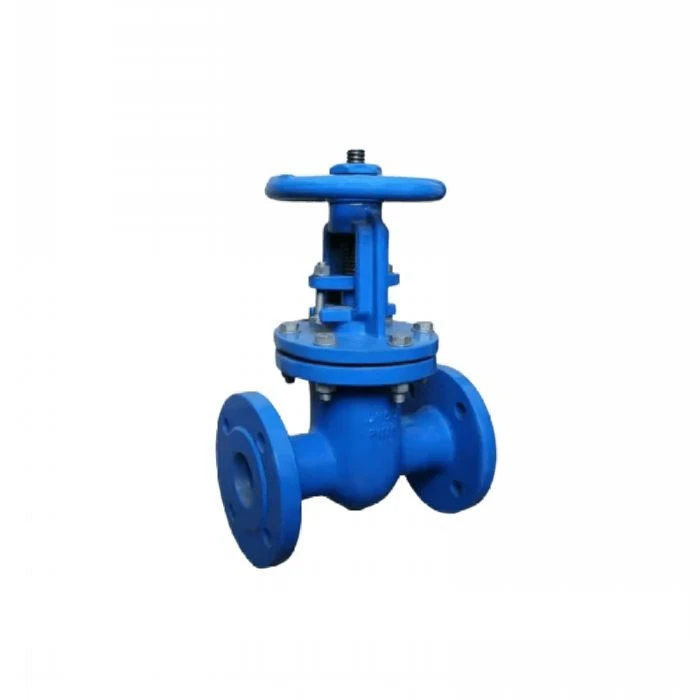

Pn10 Cast Iron Flange Hard Gate Valve

PN10 Cast Iron Flange Hard Gate Valve

Valve stem form: Valve stem lifting type (hidden stem)
Gate form: wedge gate
Whether the gate is elastic: elastic gate
Number of gates: single gate
Applicable medium: water
Pressure environment: low pressure
Drive mode: manual
Flow direction: two-way
Temperature environment: normal temperature
Valve standard: German standard
Valve function: cut-off
Sealing method: hard seal
Mode of action: double action
Function: switch type

main material
Valve body: gray iron, ductile iron Valve cover: gray iron, ductile iron Valve stem: stainless steel, carbon steel Valve seat: bronze, brass Handwheel: ductile iron Valve stem: ductile iron
product specifications
Specification range: 1 1/2'-24'DN40-DN600
Pressure range: PN10, PN16
