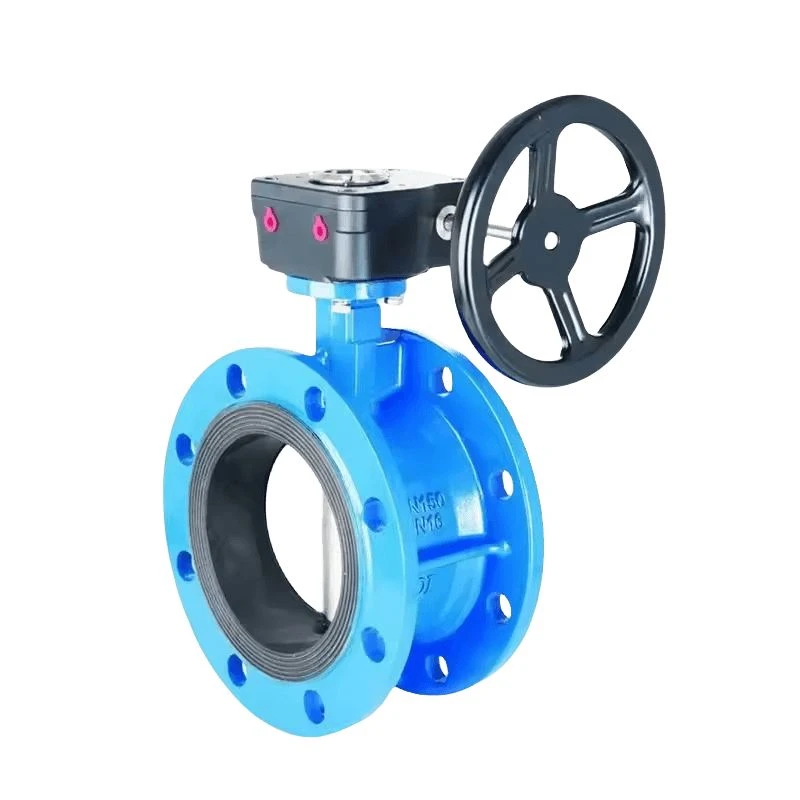

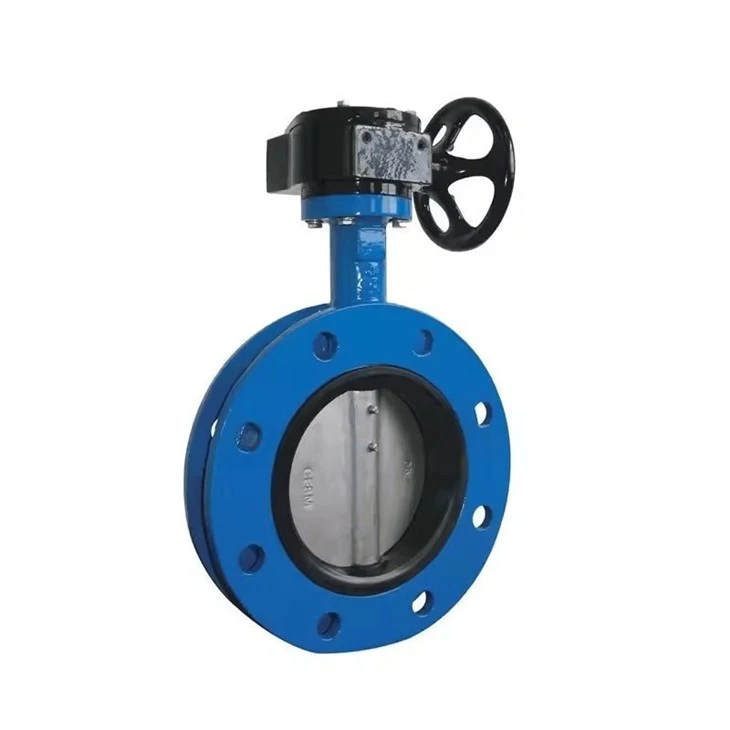

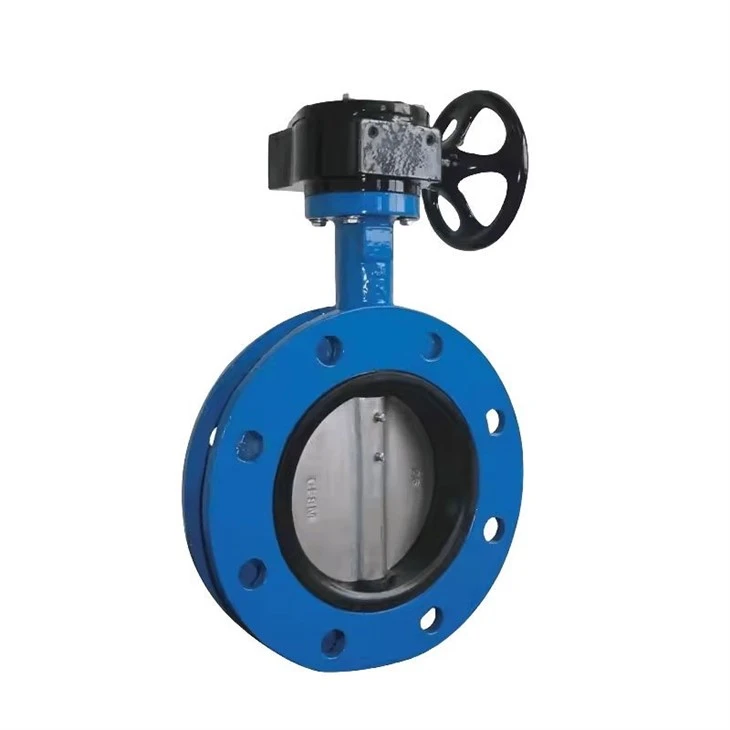

En 593 Pn10 Pn16 U Type Flange Butterfly Valve

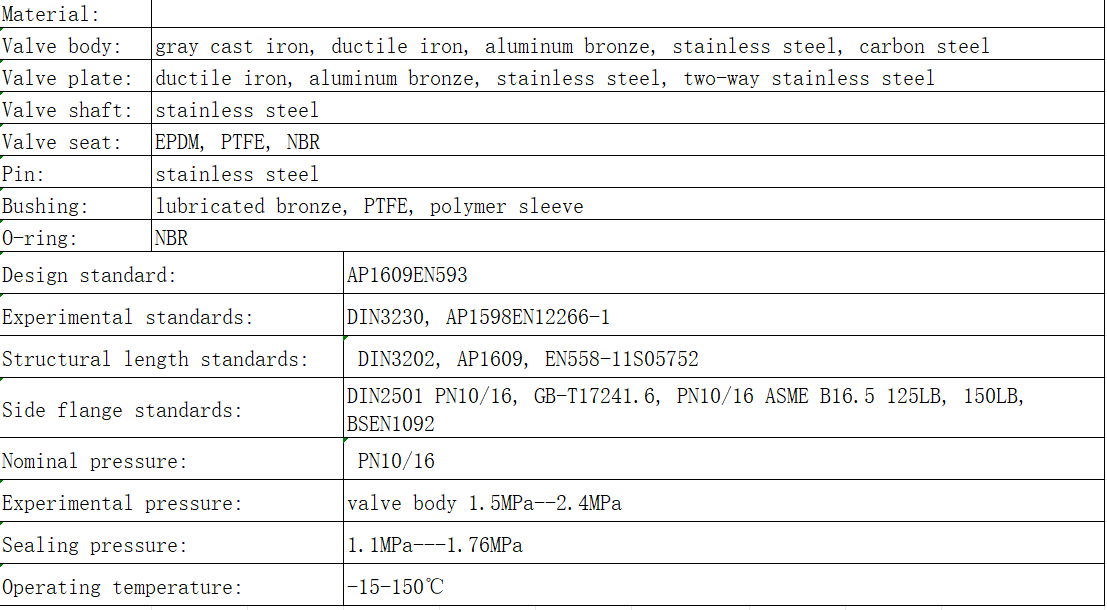

U-shaped double flange butterfly valve design standards: MSS SP-67, API609, EN593
Flange connection: DIN PN10/16/25, ANSI B16.1, BS4504, ISO PN10/16, JIS B2212/2213, BS 10 Table D, BS 10 Table E
Upper flange: ISO 5211
Structure length: API609, ISO5752-20, BS5155
Test standard: API598

U-shaped double flange butterfly valve design features: Design features: The flange holes strictly comply with standards and are easy to install.
Easy to repair and replace
The shaft and plate are connected by pins and can be switched on and off quickly.
U-shaped double flange butterfly valve performance: Nominal diameter: DN40-DN1200
Nominal pressure: PN (MPa): 1.0, 1.6, 2.0, 2.5
Test pressure (water pressure): Shell test: 1.5 times
Sealing test: 1.1 times
Applicable media: fresh water, sea water, gas, oil, acid, alkali, etc.
