Flange Ball Valve With Bracket

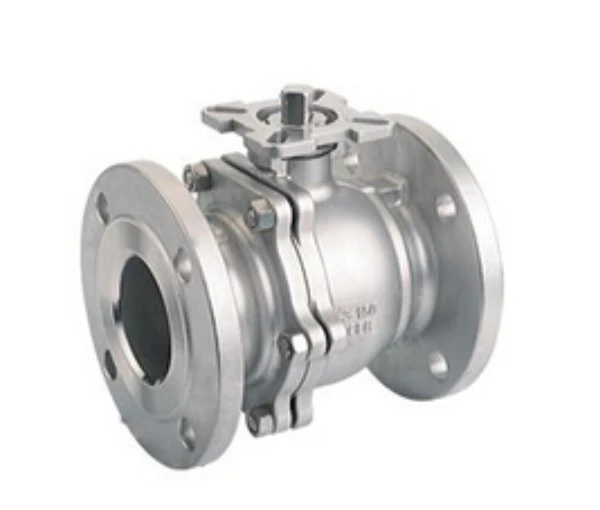

Flange ball valve with bracket
Flange ball valves with brackets are used on various pipelines of Class150~Class1500, PN16~PN100, and JIS10K~JIS20K. They are used to cut off or connect the media in the pipelines. They are made of different materials and can be used for water, steam, and oil respectively. products, liquefied petroleum gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing media, urea and other media.
2. Product features:
1. Among various valves, the ball valve has the smallest flow resistance. When the full-diameter ball valve is opened, the ball channel, valve body channel and connecting pipe diameter are equal and become one diameter, and the medium can flow through almost without loss.
2. The ball valve can be fully closed and fully opened by rotating 90°, opening and closing quickly. Compared with gate valves and globe valves of the same specifications, ball valves are small in size and light in weight, making them easy to install in pipelines.
|
work pressure(MPa) |
1.6~10.0 |
||
|
proper temperature(℃) |
≤180 |
||
| Applicable media | Water, steam, oil | Weakly corrosive media | |
Kind tips:
Please provide detailed model, pressure, caliber, material, medium, temperature, delivery place and delivery time when ordering.

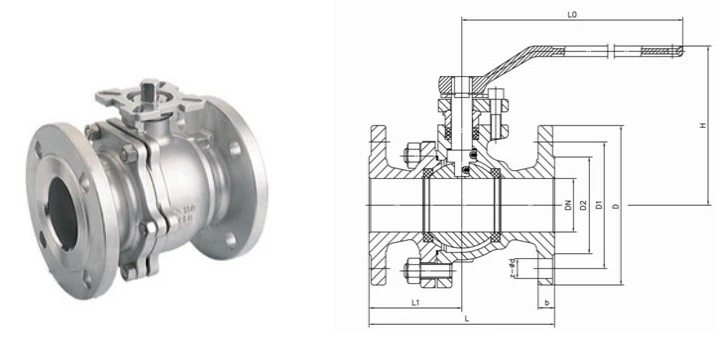

PN1.6MPa Main connection dimensions and weight：
|
Nominal diameter DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
|
L
|
130
|
140
|
150
|
165
|
180
|
200
|
220
|
250
|
280
|
320
|
360
|
400
|
|
H
|
59
|
63
|
75
|
85
|
95
|
107
|
142
|
152
|
178
|
252
|
272
|
342
|
|
W
|
130
|
130
|
160
|
180
|
230
|
230
|
400
|
400
|
650
|
1050
|
1050
|
1410
|
|
Wt(Kg)
|
2.5
|
3
|
5
|
6
|
7
|
10
|
15
|
19
|
33
|
58
|
93
|
160
|
PN2.5MPa Main connection dimensions and weight：
|
Nominal diameter DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
|
L
|
130
|
140
|
150
|
165
|
180
|
200
|
220
|
250
|
320
|
400
|
400
|
550
|
|
H
|
59
|
63
|
75
|
97
|
107
|
142
|
152
|
178
|
252
|
272
|
342
|
345
|
|
W
|
130
|
130
|
160
|
230
|
230
|
400
|
400
|
700
|
1100
|
1100
|
1500
|
1500
|
|
Wt(Kg)
|
2.5
|
3
|
5
|
6
|
7.5
|
10
|
15
|
20
|
33
|
60
|
93
|
175
|
|
Nominal diameter DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
|
L
|
130
|
140
|
150
|
180
|
200
|
220
|
250
|
280
|
320
|
400
|
400
|
400
|
|
H
|
59
|
63
|
75
|
85
|
95
|
107
|
142
|
152
|
178
|
252
|
272
|
342
|
|
W
|
130
|
130
|
160
|
230
|
230
|
400
|
400
|
700
|
1100
|
1100
|
1500
|
1500
|
|
Wt(Kg)
|
3
|
4
|
5
|
7
|
9
|
12
|
18
|
28
|
46
|
75
|
106
|
190
|
PN6.4MPa Main connection dimensions and weight：
|
Nominal diameter DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
|
L
|
165
|
190
|
216
|
229
|
241
|
292
|
330
|
356
|
432
|
508
|
559
|
660
|
|
H
|
59
|
63
|
75
|
97
|
107
|
142
|
152
|
178
|
252
|
272
|
305
|
398
|
|
W
|
130
|
130
|
160
|
230
|
230
|
400
|
400
|
700
|
1100
|
1100
|
1500
|
1800
|
|
Wt(Kg)
|
6.5
|
7
|
8
|
12
|
14
|
18
|
28
|
40
|
65
|
98
|
140
|
250
|
PN10MPa Main connection dimensions and weight：
|
Nominal diameter DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
|
L
|
165
|
190
|
216
|
229
|
241
|
292
|
330
|
356
|
432
|
508
|
559
|
660
|
|
H
|
59
|
63
|
75
|
97
|
107
|
142
|
152
|
178
|
252
|
272
|
305
|
398
|
|
W
|
130
|
130
|
160
|
230
|
230
|
400
|
400
|
700
|
1100
|
1100
|
1500
|
1800
|
|
Wt(Kg)
|
6.5
|
7
|
10
|
15
|
18
|
25
|
32
|
46
|
75
|
|
|
