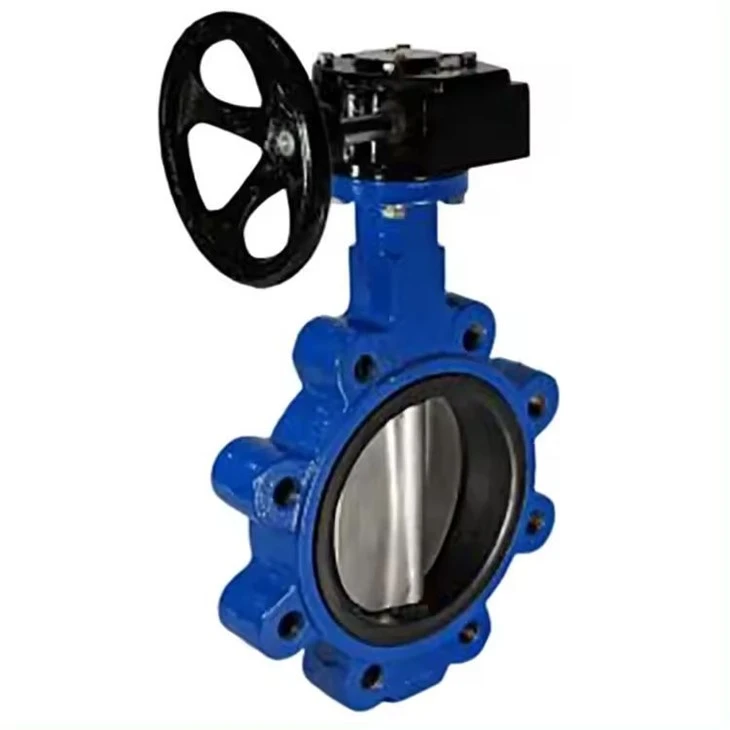

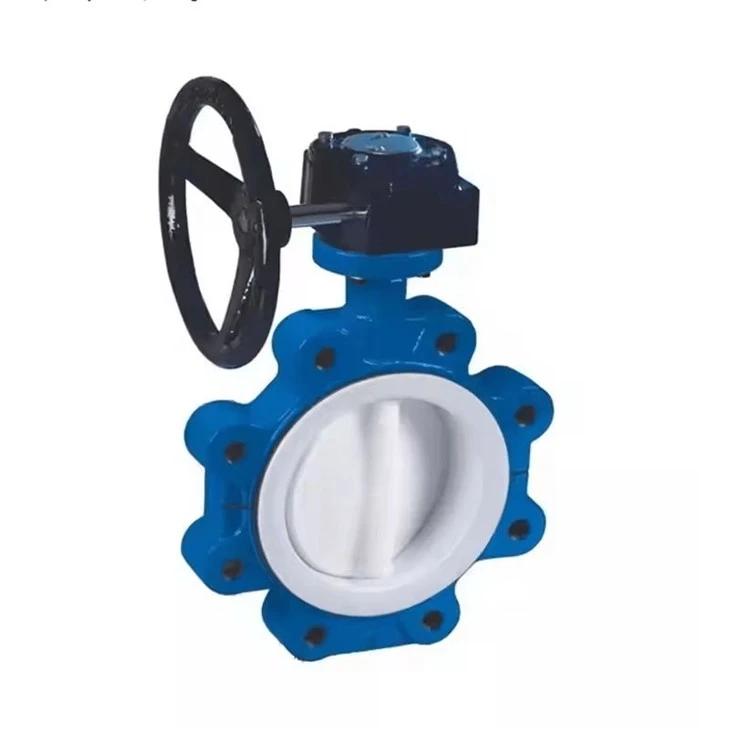

Wcb Class150 Ductile Iron Wafer Butterfly Valve

Ductile iron wafer handle butterfly valve working range diameter mm50mm 200mm working pressure 16Bar maximum pressure 24Bar maximum temperature -30 100 medium water, seawater, salt, compressed air, oil, air, natural gas, food and other industries

1.Elastic sealing is generated by torque.
2.The ingenious wedge-shaped design enables the valve to have an automatic sealing function that becomes tighter and tighter as it is closed, with compensation and zero leakage between the sealing surfaces.
3.Small size, light weight, light operation, easy to install.
4. Pneumatic and electric devices can be configured according to user requirements to meet the needs of remote control and program control.
5.The material of the replacement parts can be applied to various media, and the lining can be anti-corrosion (lined with F46, GXPP, PO, etc.).
6.Diversified continuous structures: clamp, flange, butt welding.

Application: General
Place of Origin: Shandong, China
Power: Manual
Structure: BUTTERFLY
Customized support: OEM, ODM, OBM, Software reengineering
Port Size: DN40-DN600
Warranty: 3 years
