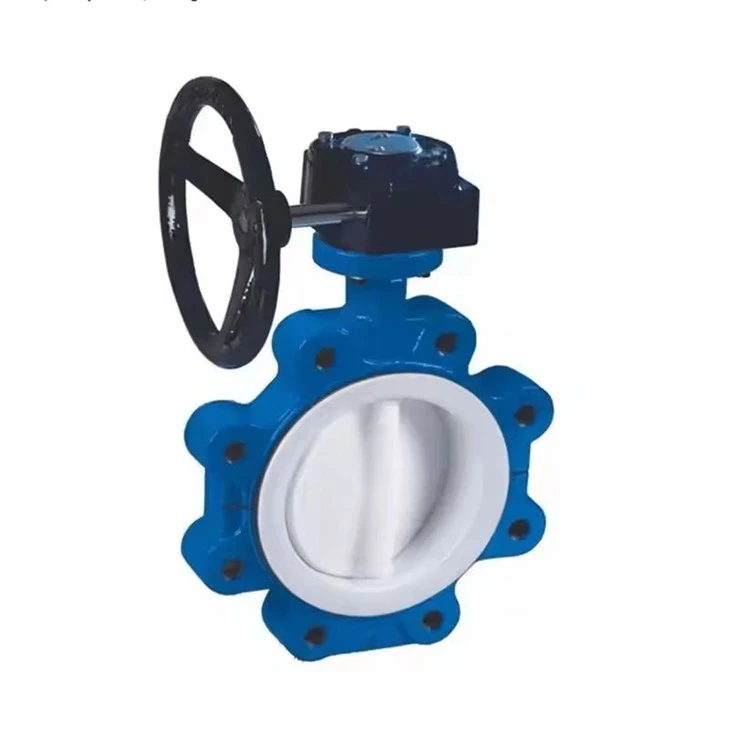

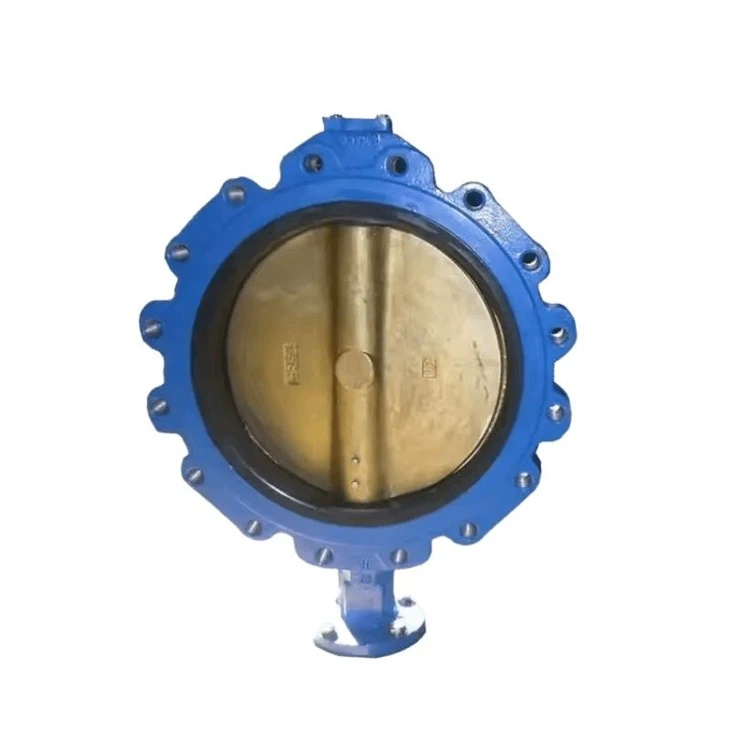

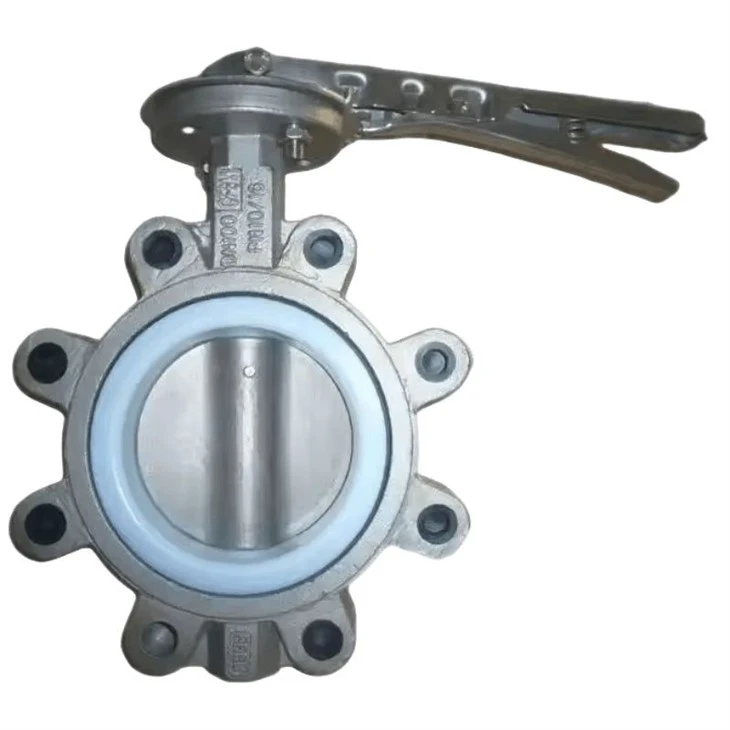

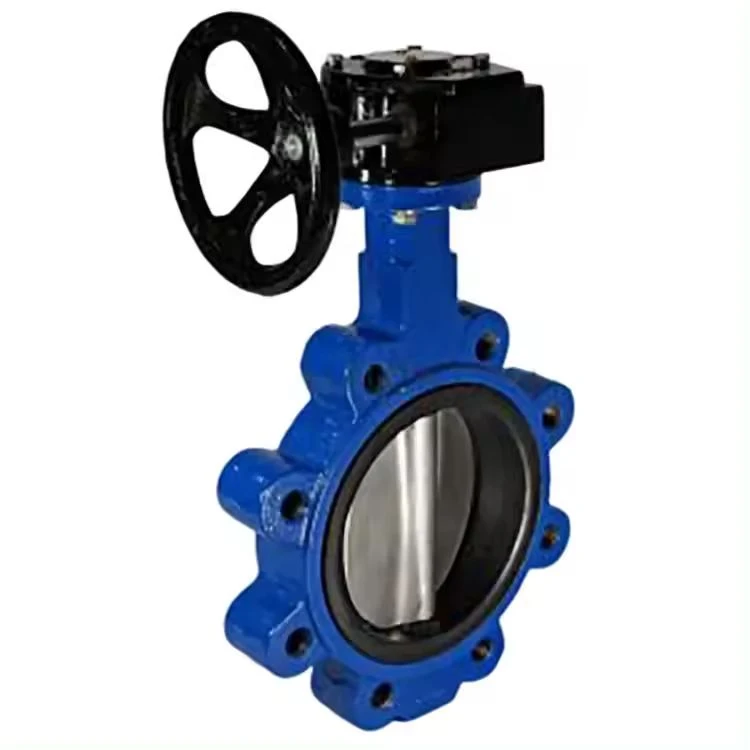

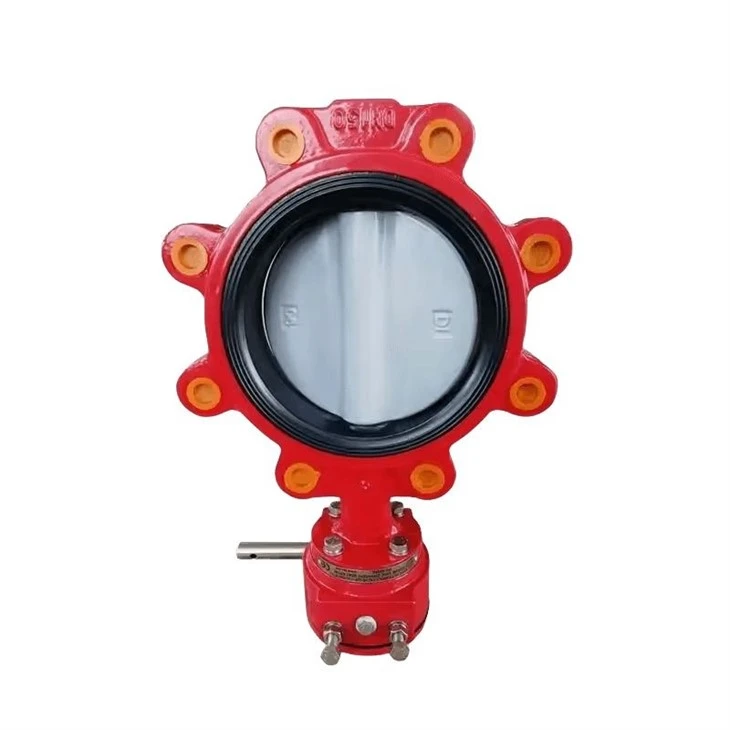

Manual Delvalsanitary Butterfly Valve

Sanitary butterfly valves are widely used in beer, beverages, dairy products, juices, pharmaceuticals, bioengineering and other fields.

Connection form: welding type, quick installation type, threaded type, clamp type, clamp type, etc.

Driving mode: manual, worm gear transmission, pneumatic transmission, electric transmission

Series: sanitary valve series

Standards: ISO, DIN, IDF, SMS, 3A, etc.

Material: sus304, sus316L and other stainless steel materials

Product Description: Well sealed and long service life

Quality: The inside and outside of the product are processed with high-end polishing equipment to meet surface precision requirements

1. The rubber sealing ring and valve plate of the butterfly valve are all imported parts, which ensures the performance and service life of the butterfly valve.

2. The valve body is finely turned using a high-precision CNC lathe, which ensures reliable interchangeability of the butterfly valve and eliminates the trouble of replacing rubber that cannot guarantee its performance.

3. The valve stem is equipped with a nylon bushing, which reduces friction and allows flexible and easy opening.

4. The steel parts are all made of stainless steel, and the rubber is made of food rubber, with high hygienic quality.

5. The diameter of the valve body is the same as the inner diameter of the pipe. When opened, the narrow and streamlined valve plate is consistent with the direction of the fluid. The flow is large but the resistance is small, and there is no accumulation of materials.

6. The handle adopts pull type and pull type, which can withstand large operating torque and is not easy to break.

7. The opening and closing range is 0~90 degrees, and can be fixed at positions every 15 degrees. It is adjustable, opens and closes quickly, and is easy to operate.

8. The valve bodies are all detachably connected, with simple structure and easy maintenance.

9. The shape is light and beautiful, the surface is bright and does not stick to dust, and there are no burrs to prick your hands.

10. After rigorous strength and sealing tests, the quality is guaranteed.

11. Conduct a fatigue life test of no less than 30,000 times on a sample to ensure its service life.

Application: General
Place of Origin: Shandong, China
Power: Manual
Structure: BUTTERFLY
Customized support: OEM, ODM, OBM, Software reengineering
Port Size: DN15-DN150   1〞- 6〞
Warranty: 3 years
