Worm Gear Flange Soft Seal Butterfly Valve
Worm gear flange soft seal butterfly valve
Worm gear flange soft seal butterfly valve uses and characteristics
Soft-sealed butterfly valves are suitable for regulating flow and intercepting media in water supply, drainage, and gas pipelines with temperatures ≤120°C and nominal pressures ≤1.6MPa. Its main features are:
1. The design is novel and reasonable, the structure is unique, the weight is light, and it can open and close quickly.
2. The operating torque is small, the operation is convenient, labor-saving and dexterous.
3. It can be installed at any location and is easy to maintain.
4. The seals can be replaced, and the sealing performance is reliable and achieves two-way sealing and zero leakage.
5. The sealing material is resistant to aging, corrosion, and has long service life.
Pressure test: GB/T13927-1992; JB/T9092-1999

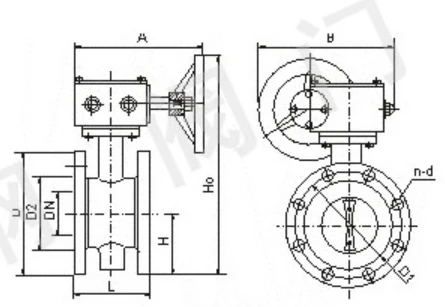

| Nominal diameter | structure length |
Overall dimensions (reference value) | Connection size (standard value) |
weight |
|||||||
|
0.6MPa |
|||||||||||
|
mm |
inch |
L |
H |
H0 |
A |
B |
D |
D1 |
D2 |
n-d |
|
|
50 |
2 |
108 |
63 |
306 |
180 |
200 |
140 |
110 |
88 |
4-14 |
13 |
|
65 |
21/2 |
112 |
70 |
321 |
180 |
200 |
160 |
130 |
108 |
4-14 |
14 |
|
80 |
3 |
114 |
83 |
346 |
180 |
200 |
190 |
150 |
124 |
4-18 |
15.5 |
|
100 |
4 |
127 |
105 |
387 |
180 |
200 |
210 |
170 |
144 |
4-18 |
19.5 |
|
125 |
5 |
140 |
115 |
411 |
180 |
200 |
240 |
200 |
174 |
8-18 |
25.5 |
|
150 |
6 |
140 |
137 |
447 |
270 |
280 |
265 |
225 |
199 |
8-18 |
28.5 |
|
200 |
8 |
152 |
164 |
572 |
270 |
280 |
320 |
280 |
254 |
8-18 |
48 |
|
250 |
10 |
250 |
206 |
646 |
270 |
280 |
375 |
335 |
309 |
12-18 |
69 |
|
300 |
12 |
270 |
230 |
738 |
380 |
420 |
440 |
395 |
363 |
12-22 |
91 |
|
350 |
14 |
290 |
248 |
761 |
380 |
420 |
490 |
445 |
413 |
12-22 |
110 |
|
400 |
16 |
310 |
289 |
877 |
450 |
470 |
540 |
495 |
463 |
16-22 |
140 |
|
450 |
18 |
330 |
320 |
938 |
480 |
490 |
595 |
550 |
518 |
16-22 |
180 |
|
500 |
20 |
350 |
343 |
993 |
480 |
490 |
645 |
600 |
568 |
20-22 |
215 |
|
600 |
24 |
390 |
413 |
1131 |
480 |
490 |
755 |
705 |
667 |
20-26 |
290 |
|
700 |
28 |
430 |
478 |
1476 |
640 |
660 |
860 |
810 |
772 |
24-26 |
560 |
|
800 |
32 |
470 |
525 |
1533 |
640 |
660 |
975 |
920 |
878 |
24-30 |
910 |
|
900 |
36 |
510 |
585 |
1655 |
750 |
860 |
1075 |
1020 |
978 |
24-30 |
1500 |
|
1000 |
40 |
550 |
640 |
1765 |
850 |
900 |
1175 |
1120 |
1078 |
28-30 |
1750 |
|
1200 |
48 |
630 |
755 |
1995 |
850 |
900 |
1405 |
1340 |
1292 |
32-33 |
2180 |
|
1400 |
56 |
710 |
910 |
2310 |
1000 |
925 |
1630 |
1560 |
1510 |
36-36 |
2400 |
|
1600 |
64 |
790 |
1030 |
2595 |
1000 |
925 |
1830 |
1760 |
1710 |
40-36 |
2870 |
|
1800 |
72 |
870 |
1140 |
2810 |
1100 |
980 |
2045 |
1970 |
1918 |
44-39 |
3380 |
|
2000 |
80 |
950 |
1250 |
3100 |
1100 |
980 |
2265 |
2180 |
2180 |
48-42 |
4010 |
