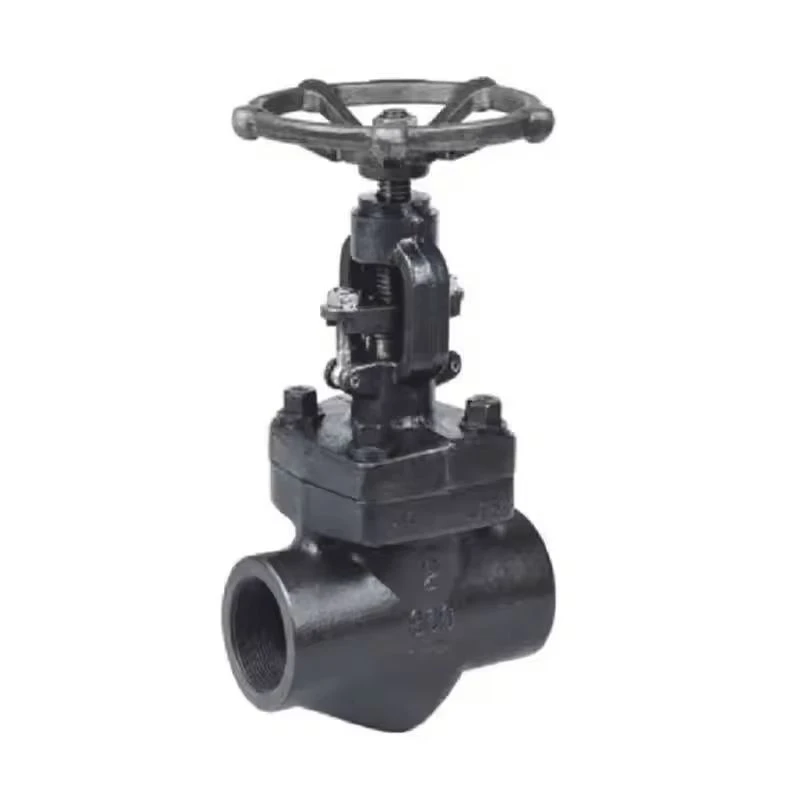

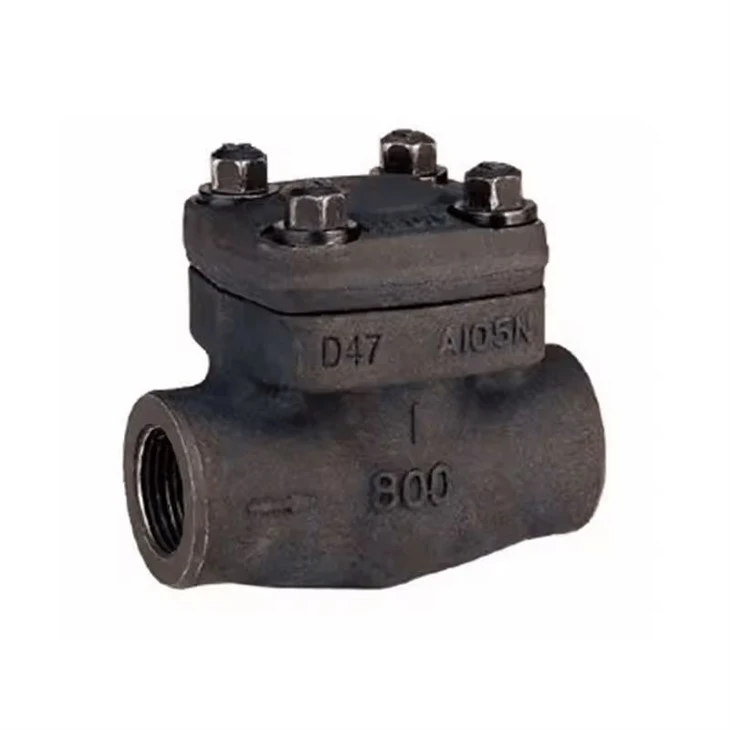

Api 602 A105 Forged Cast Gate Valve
API 602 A105 Forged Cast Gate Valve
Overview of manual welding gate valve
Manually welded gate valves are available in three cover designs. The first is a bolted valve cover. For valves designed according to this design, the valve body and the valve cover are connected with bolts and nuts, and the wound gasket (made of 316 flexible graphite) is sealed. Metal ring connections can also be used when customers have special requirements. The second design form is the welded valve cover. For valves with this design form, the valve body and the valve cover are threaded and fully welded and sealed. Full penetration welding connections can also be used when customers have special requirements. The third type is the pressure self-tightening valve cover. For valves designed according to this design, the valve body and the valve cover are threaded, and the internal pressure self-tightening ring seals.
Manual welding gate valve standard material details list
| NO. | parts | CS to ASTM | AS to ASTM | SS to ASTM | |
| A105 | F22 | F304(L) | F316(L) | ||
| 1 | valve body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | valve seat | A276 420 | A276 304 | A276 04(L) | A276 316(L) |
| 3 | valve plate | A182 F430&410 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | valve rod | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 5 | Sealing nut | A105 | A182 F304 | A182 F304(L) | F316(L) |
| 6 | sealing ring | A216 304L | A276 316L | ||
| 7 | valve cap | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 8 | Joint bolt | A193 B7 | A193 B16 | A193 B8(M) | |
| 9 | pin | A276 F420 | A182 F304(L) | ||
| 10 | filler | flexible graphite | PTFE | ||
| 11 | lifting bolt | A194 2H | A194 4 | A194 8 | A194 8M |
| 12 | Packing gland | A276F 420 | A182 F304 | ||
| 13 | Packing plate | A216 WCB | A182 F304 | ||
| 14 | nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 15 | Stem nut | A276 410 | |||
| 16 | Fixing nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 17 | handwheel | A197 | |||
| 18 | fasten the screw nut | A194 H | A194 4 | A194 8 | A194 8M |
| 19 | Grease mouth | copper | |||
| Applicable media | Water, steam, oil, etc. Water, steam, oil, etc. Nitric acid, acetic acid, etc. | ||||
| proper temperature | -29℃～425℃ | -29℃～550℃ | -29℃～200℃ | ||
Note: Other materials required by customers can also be used. The sealing surface material is determined by matching the internal part code specified by the customer.
CS=carbon steel;AS=alloy steel;SS=stainless steel;
Manual welding gate valve size (MM) and weight (KG)
| NPS | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | |
| L | 900Lb-150Lb | 140 | 140 | 140 | 178 | 178 | 216 |
| 2500Lb | 186 | 186 | 186 | 232 | 232 | 279 | |
| H(open) | 321 | 321 | 321 | 380 | 414 | 502 | |
| W | 160 | 160 | 180 | 200 | 250 | 280 | |
| KG | 900LB-1500LB | 11.5 | 10.8 | 10.5 | 19.6 | 21.0 | 55.4 |
| 2500LB | 12.3 | 11.6 | 10.8 | 26.0 | 28.4 | 60.0 | |
download Google:
1. ① Product name and model of manual welding gate valve ② Caliber of manual welding gate valve ③ Whether the manual welding gate valve comes with accessories so that we can select the correct model for you.
2. If the manual welded gate valve model of Zhenggang Valve has been selected by the design unit, please order directly from our sales department according to the manual welded gate valve model.
3. When the occasion of use is very important or the environment is complex, please try your best to provide design drawings and detailed parameters, and our Zhenggang valve experts will review and check them for you.
