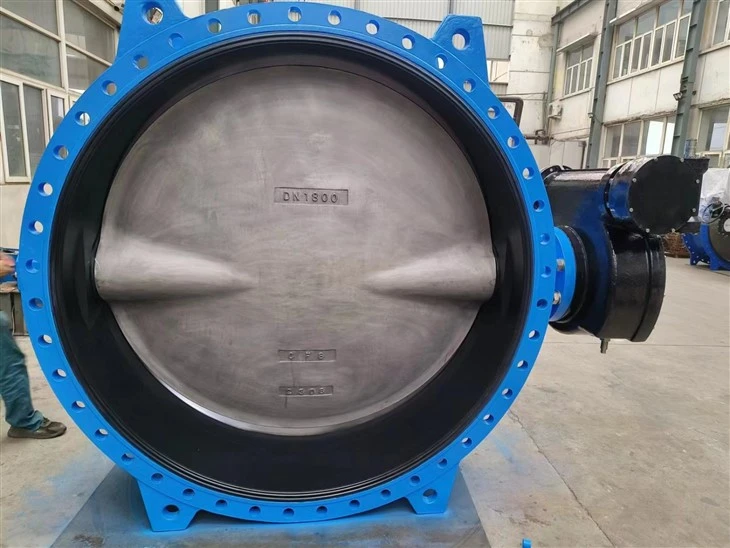

DN50 DN1200 Flange Eccentric Butterfly Valve D343X

DN50 DN1200 Flange Eccentric Butterfly Valve D343X

Name: China DN50 DN1200 Flange Eccentric Butterfly Valve D343X Manufacturers Suppliers Factory - Jinhai Precision Instrument
Brand: Jinhai
SKU: 236731606

DN50 DN1200 flange eccentric butterfly valve D343X

Send Inquiry

DN50 DN1200 flange eccentric butterfly valve D343X

High quality D343X soft seal butterfly valve flange butterfly valve double eccentric butterfly valve

Double eccentric butterfly valve is also called high-performance water valve. It is mainly suitable for drainage in water plants, power plants, steel smelting, chemical industry, water source engineering, environmental facilities and other systems. It is especially suitable for use as regulating and intercepting equipment on water pipelines. Compared with the center line butterfly valve, the double eccentric butterfly valve is more resistant to high pressure, has a longer life and has better stability. Jinhai Precision Instrument Co., Ltd. has specialized in the production and development of waterway valves for 30 years and has mature experience in piping configuration. Our valves are reasonably designed, compact in structure, easy to disassemble and assemble, and easy to maintain. It adopts a double eccentric structure to reduce the friction of the sealing ring and extend its service life. The valve plate sealing ring adopts a T-shaped structure, and the sealing pair is linearly sealed, completely sealed and without leakage. Replace the materials of valve plate sealing rings, O-rings, rotating shafts and other parts, which can be applied to a variety of media and different temperatures.

On the basis of the single eccentric butterfly valve, the double eccentric butterfly valve is currently the most widely used. Its structural feature is that the axis of the valve stem is both deviated from the center of the butterfly plate and the center of the body. The double eccentric effect enables the butterfly plate to quickly separate from the valve seat after the valve is opened, greatly eliminating unnecessary excessive extrusion and scratching between the butterfly plate and the valve seat, reducing the opening resistance, reducing wear, and improving improves valve seat life.

DN		100～1200	100～1200	mm
PN		1.0	1.6	MPa
test pressure	seal	1.5	2.4	MPa
	body	1.1	1.76	MPa
proper temperature(℃)		-10℃～120℃
Applicable media		Water, sewage, air, etc.

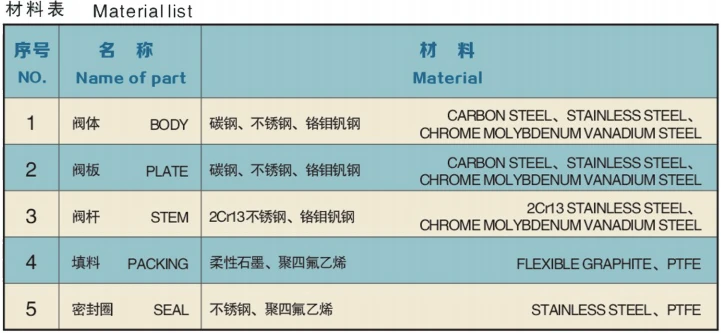

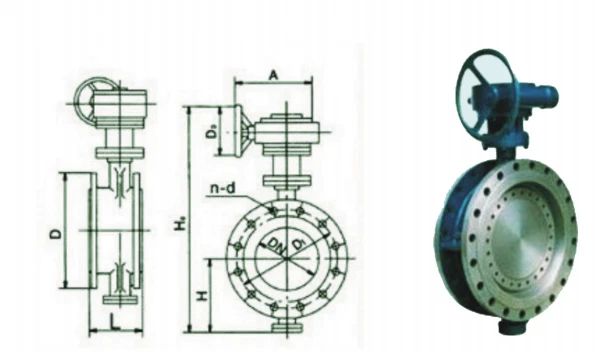

the main size

DN DN(mm)	size(mm)
	D	D1	d	b	f	short structure		long structure	H	H1	H2	L		L1	L2	L3	L4	L5	h	m
	D	D1	d	b	f	n-do	4-M	n-do	H	H1	H2	short structure	long structure	L1	L2	L3	L4	L5	h	m
100	220	180	158	24	3	-	-	8-175	446	234	122	-	190	64	48	121	180	-	-	180
150	285	240	21 2	26	3	-	-	8-22	521 5	279	153	-	210	74	58	128	194	-	-	180
200	340	295	268	28	3	4-22	M20	8-22	690	349	216	89	230	80	70	163	241	250
250	390	350	320	28	4	8-22	M20	12-22	800	406	219	114	250	98	95	193	291	350
300	450	400	370	28	4	8-22	M20	12-22	959	542	267	114	270	449	178	254	104	473	300
350	505	460	430	30	4	12-22	M20	16-26	1048	583	315	127	290	449	178	254	104	473	300
400	565	515	482	30	4	12-26	M24	16-26	1120	620	350	140	310	449	178	254	104	473	300
450	615	565	532	34	4	16-26	M24	20-26	1190	667	373	152	330	449	178	254	104	473	300
500	670	620	585	34	5	16-26	M24	20-26	1280	702	428	152	350	486	196	254	130	528	300
600	780	725	685	35	5	16-30	M27	20-30	1409	759	450	178	390	627	244	245	162	596	345	400
700	895	840	800	40	5	20-30	M27	24-30	1613	885	528	229	430	627	244	245	162	596	390	400
800	1015	950	905	44	5	20-33	M30	24-33	1736	1013	573	241	470	635	270	295	196	711	430	300
900	1115	1050	1005	44	5	24-33	M30	28-33	1860	1071	639	241	510	635	270	295	196	711	470	300
1000	1230	1160	1110	50	5	24-36	M33	28-36	2107	1234	723	300	550	955	455	296	295	807	520	300
1200	1455	1380	1330	52	5	28-39	M36	32-39	2326	1343	833	350	630	955	45
