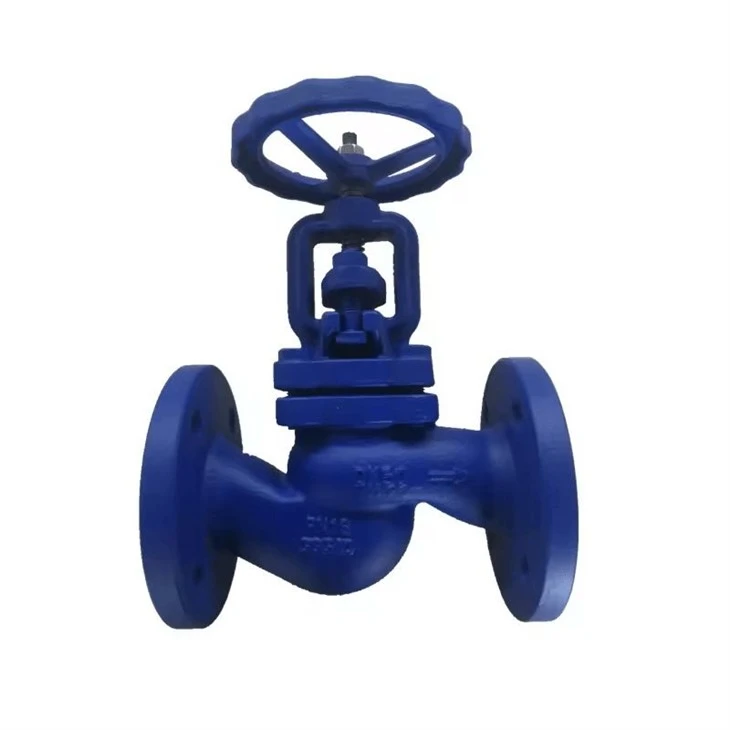

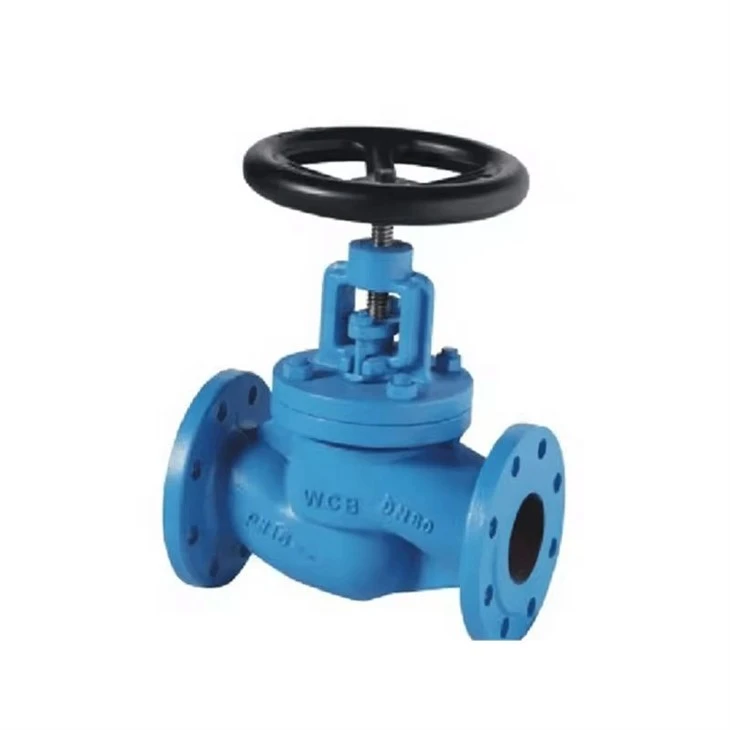

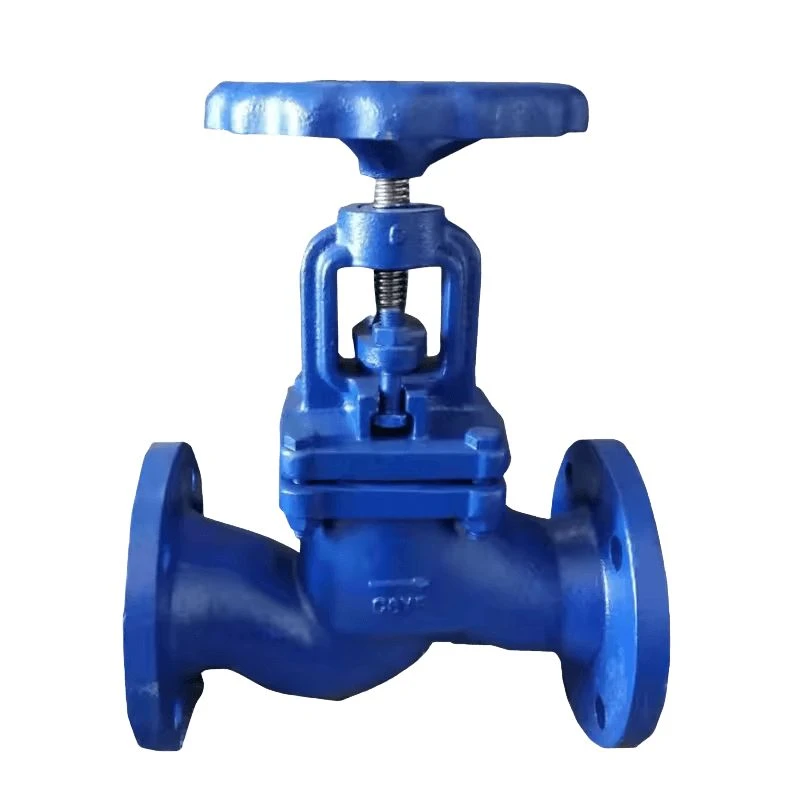

DIN 3356 PN16 CAST STEEL GLOBE VALVE

The main products of German standard stop valve are German standard cast steel stop valve, German standard flange stop valve, German standard stainless steel stop valve, din flange stop valve. German standard stop valve is widely used in petrochemical industry, chemical fiber textile, plastic paper making, electric power Steel, printing and dyeing rubber, natural gas and other gas systems have safe and reliable performance.

German standard stop valve technical parameters

Design standard: din3356;

Structure length: din3202;

Connection flange: din2543-2545;

Trial and Inspection: DIN3230.

Caliber: dn15-1000

Nominal pressure: pn1.6~16mpa;

Working temperature: -29~350℃;

Working medium: water, steam, oil, etc.;

Valve body material: gs-c25, cf8, cf3.

German standard globe valve product features

1. The German standard stop valve adopts a rising stem bracket type, bolted valve cover structure, rotating lift stem and hand wheel. The design of the valve body and valve cover has been strictly calculated and has good strength, stiffness and flow capacity.

2. The upper seal seat is designed on the valve cover of the German standard stop valve to make the packing seal more reliable in the fully open state and facilitate the replacement of the packing. The sealing surface of the German standard stop valve is overlayed with CO-based carbide, which is wear-resistant, corrosion-resistant, anti-friction and has a long service life.
