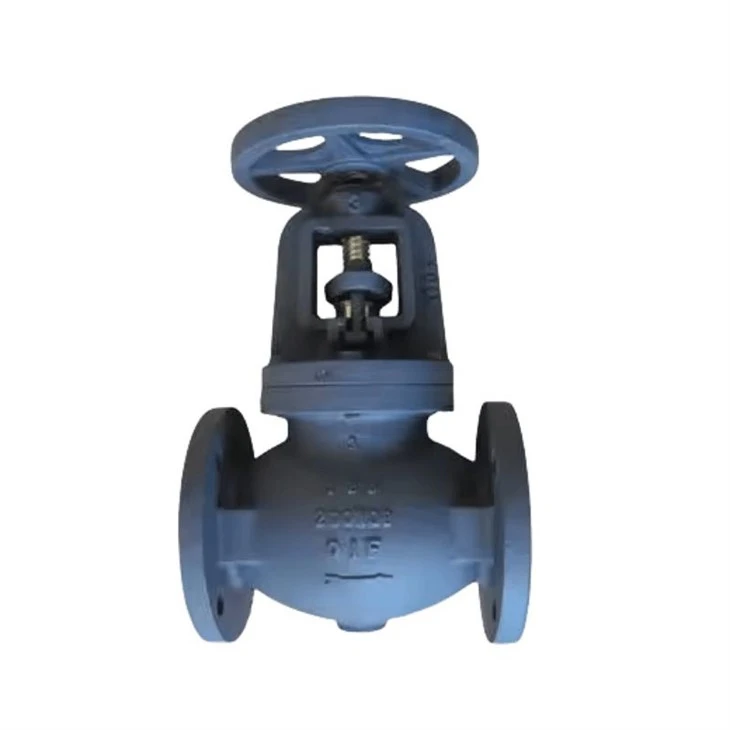

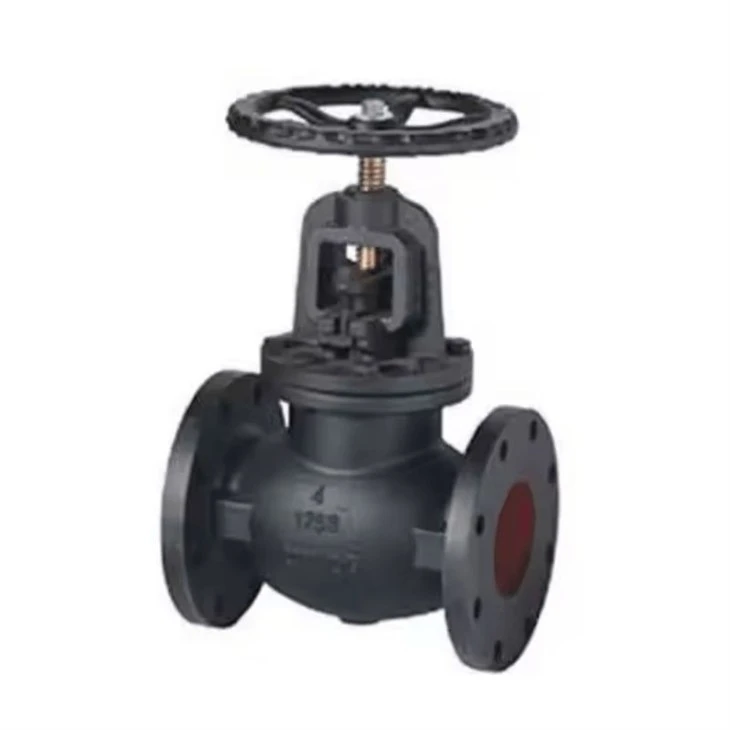

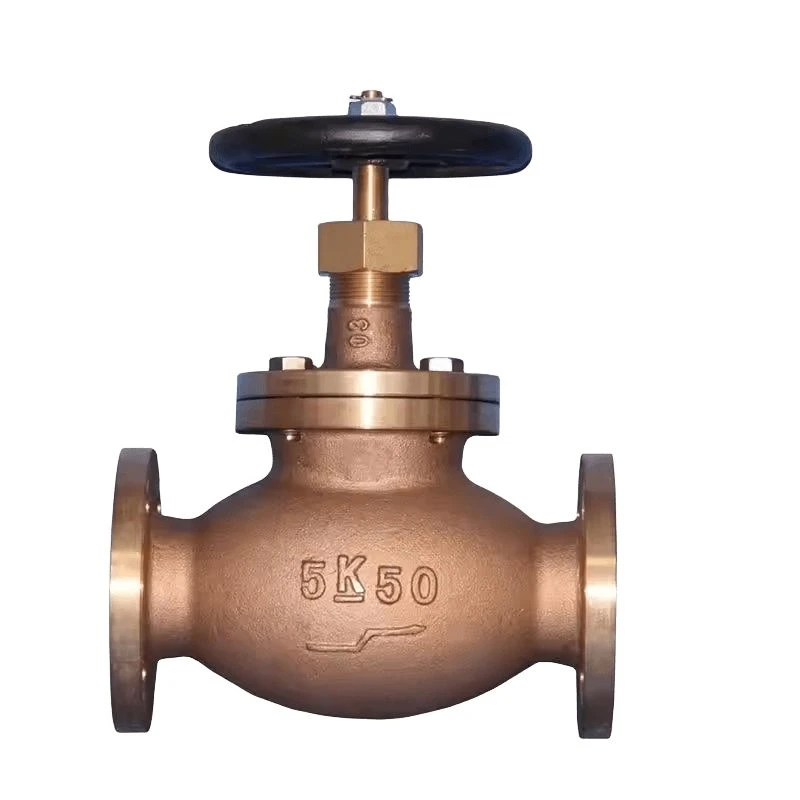

MSS SP-85 Class 125 Cast Iron Globe Valve



The applicable media for cast iron stop valves are: water, oil, steam, acidic media, etc. Operation modes include: manual, gear transmission, electric, pneumatic, etc.



Product name: cast iron stop valve

Medium: water, oil, steam


Operation mode: manual, gear transmission, electric

Advantages: simple structure, convenient manufacturing and maintenance

advantage
1. Simple structure, convenient to manufacture and maintain. 2. The working stroke is small and the opening and closing time is short.

3. Good sealing performance, small friction between sealing surfaces and long service life.

Precautions
1. The stop valve operated by handwheel and handle can be installed at any position in the pipeline. 2. The handwheel, handle and transmission mechanism are not allowed to be used for lifting.

3. The flow direction of the medium should be consistent with the direction of the arrow shown on the valve body.



size

Nominal

pressure

DN

structure size wall thickness

flange

bolt handwheel Lift reference weight

L

H≈

H1



AS type

BS

AS

BS

BS

D

D1

D2

d0

b

n个

Th

Do

S

AS

BS



0.6

50

230

125

288

258

125

8

140

110

90

14

16

4

M12

140

12

14

12.2

12.2

65

290

145

310

277

145

9

160

130

110

14

16

4

M12

140

12

18

19.2

17.7



80

310

155

345

304

155

9

190

150

128

18

18

4

M16

160

14

24

23.8

21.7



100

350

175

374

325

175

10

210

170

148

18

18

4

M16

180

14

35

34.5

32.3



125

400

200

426

366

200

10

240

200

178

18

20

8

M16

200

17

44

42.5

42.8



150

480

225

482

410

225

11

265

225

202

18

20

8

M16

200

17

57

58.7

55.8



175

540

225

557

489

225

11

295

255

232

18

22

8

M16

200

17

60

76.8

70.3



200

600

275

621

549

275

11

320

280

258

18

22

8

M16

280

24

68

102.0

95.6



250

730

325

721

623

325

13

375

335

312

18

24

12

M16

360

27

80

158.0

151.0



300

850

375

794

691

375

13

440

395

365

22

24

12

M20

450

32

100

218.0

207.0



1.0

65

290

145

310

277

145

9

185

145

122

18

20

4

M16

140

12

18

21.6

20.1

80

310

155

345

304

155

9

200

160

133

18

22

8

M16

160

14

24

26.0

23.9



100

350

175

374

325

175

10

220

180

158

18

24

8

M16

180

14

35

35.0

32.8



125

400

200

426

366

200

10

250

210

184

18

26

8

M16

200

17

44

44.3

44.6



150

480

225

482

410

225

11

285

240

212

22

26

8

M20

200

17

57

62.7

59.8



175

540

225

557

489

225

11

315

270

242

22

28

8

M20

280

24

60

80.3

73.8



200

600

275

621

543

275

11

340

295

268

22

28

8

M20

360

27

68

106.0

99.6



250

730

325

721

623

325

13

395

350

320

22

28

12

M20

450

32

80

160.0

153.0



1.6

20

150

95

217

203

95

7

105

75

58

14

16

4

M12

80

8

7

6.2

5.7

25

160

100

217

203

100

7

115

85

68

14

16

4

M12

80

8

7

6.6

6.4



32

180

105

236

216

105

7

140

100

78

18

18

4

M16

100

9

9

8.6

8.7



40

200

115

260

236

115

8

150

110

88

18

18

4

M16

120

11

11

11.0

10.7



50

230

125

288

258

125

8

165

125

102

18

20

4

M16

140

12

14

14.2

14.2
