Large Diameter Flange Ventilation Butterfly Valve

Large Diameter Flange Ventilation Butterfly Valve

Name: China Large Diameter Flange Ventilation Butterfly Valve Manufacturers Suppliers Factory - Jinhai Precision Instrument
Brand: Jinhai
SKU: 237456253

Large diameter flange ventilation butterfly valve

Send Inquiry

Large diameter flange ventilation butterfly valve

Large diameter flange ventilation butterfly valve product introduction:
The ventilation butterfly valve is made of the same material as the valve body and is processed into a sealing ring. Its applicable temperature depends on the material selection of the valve body. The nominal pressure is ≤1.0MPa. It is generally suitable for ventilation and regulating medium flow in industrial, metallurgical, environmental protection and other pipelines.

Application scope of large diameter flange ventilation butterfly valve:
The applicable temperature of the ventilation butterfly valve depends on the material selection of the valve body. The nominal pressure is ≤1.0MPa. It is generally suitable for dusty cold air or hot air gas pipelines in ventilation and environmental protection projects in industry, metallurgy, environmental protection, chemical industry, building materials, power stations, glass and other industries. , as a pipeline control device for regulating flow or cutting off gas media. Ventilation butterfly valves should generally be installed horizontally in pipelines.

Structural features of large diameter flange ventilation butterfly valve:
1. The ventilation butterfly valve has a novel and reasonable design, unique structure, light weight and rapid opening and closing.
2. The butterfly valve has small operating torque, easy operation, labor saving and dexterity.
3. Use suitable materials to meet different medium temperatures of low, medium and high, as well as corrosive media, etc.
4. There are no connecting rods, bolts, etc. inside, which ensures reliable operation, long service life, and is not affected by the flow direction of the medium.

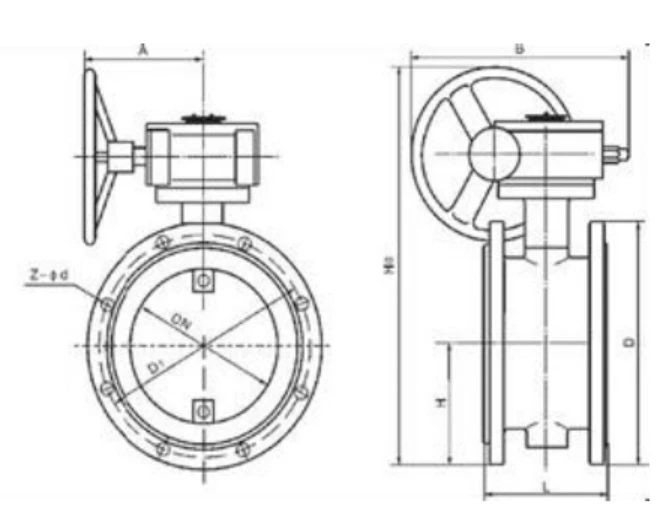

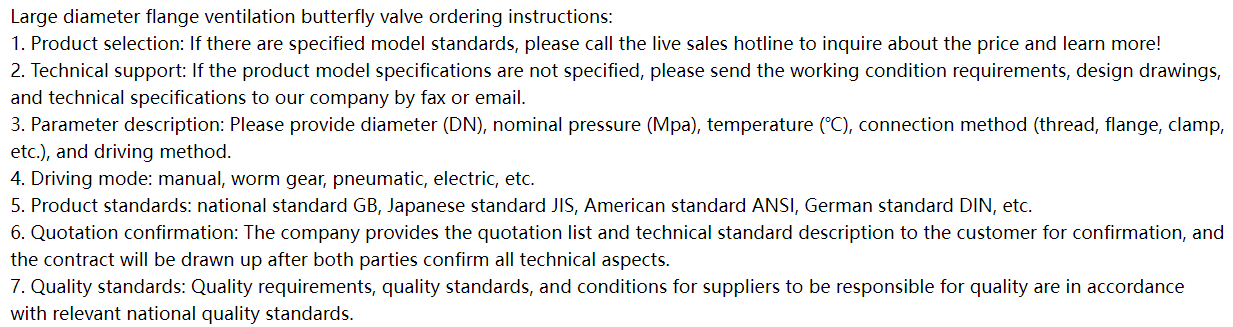

product-672-528

product-439-417

Nominal diameter		Structure length (standard value)	Dimensions (Reference)		Connection dimensions (standard values)								reference weight (kg)
Nominal diameter		Structure length (standard value)	Dimensions (Reference)		0.05MPa,0.25MPa				O．6MPa
mm	inch	L	H	H1	D	D1	D2	Z-d	D	D1	D2	Z-d
100	4	120	105	219	210	170	144	4-18	210	170	144	4-18	20
125	5	120	120	234	240	200	174	8-18	240	200	174	8-18	25
150	6	120	132	247	265	225	199	8-18	265	225	199	8-18	29
200	8	140	160	403	320	280	254	8-18	320	280	254	8-18	47
250	10	140	187	433	375	335	309	12-18	375	335	309	12-18	67
300	12	170	220	465	440	395	363	12-22	440	395	363	12-22	78
350	14	170	245	539	490	445	413	12-22	490	445	413	12-22	96
400	16	190	270	543	540	495	463	16-22	540	495	463	16-22	130
450	18	190	297	571	595	550	518	16-22	595	550	518	16-22	142
500	20	190	322	644	645	600	568	20-22	645	600	568	20-22	191
600	24	210	377	701	755	705	667	20-26	755	705	667	20-26	230
700	28	210	430	753	860	810	772	24-26	860	810	772	24-26	250
800	32	210	487	807	975	920	878	24-30	975	920	878	24-30	320
900	36	250	537	973	1075	1020	978	24-30	1075	1020	978	24-30	410
1000	40	250	587	1023	1175	1120	1078	28-30	1175	1120	1078	28-30	510
1200	48	250	687	1153	1375	1320	1280	32-30	1405	1340	1295	32-33	720
1400	56	300	760	1810	1575	1520	1480	36-30	1630	1560	1510	36-36	1270
1600	64	300	895	1815	1790	1730	1690	40-30	1830	1760	1710	40-36	1730
1800	72	300	995	1920	1990	1930	1890	44-30	2045	1970	1918	44-39	2750
2000	80	300	1095	2025	2190	2130	2090	48-30	2265	2180	2125	48-42	3050
